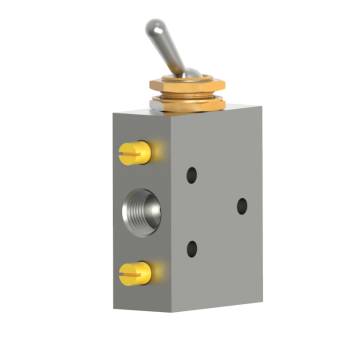

TAC Miniature Toggle Valve
Four way miniature toggle valve, detented, with 1/8 pipe ports. TAC toggle valves feature an attractive lever above a 15/32-32 threaded collar. Feature permits easy panel mounting. Toggle design prevents valve overstroke. Compact. Rugged. Exhaust metering screws included.
Details & Daten
Artikelnr.
41V
Hersteller
Humphrey
Number of Ports
5 ports
Number of Positions
2 positions
Valve Function
4-way, Detent
Piping Type
Inline, Direct Piping
Options Included
Panel Mounting Hardware, EXH Flow Controls
Approx Size (in) HxWxD
2.47 x 0.63 x 1.25
Media
Air
Type of Operation
Toggle
Flow Capacity (Cv)
0.38
Port Size
1/8 NPSF
Lubrication
Recommended
Pressure Range (psi)
0-125
Ambient Temperature Range (⁰F)
-20~180
Wetted Materials
Aluminum, Brass, SST, Buna N
Weight (oz)
6.0
